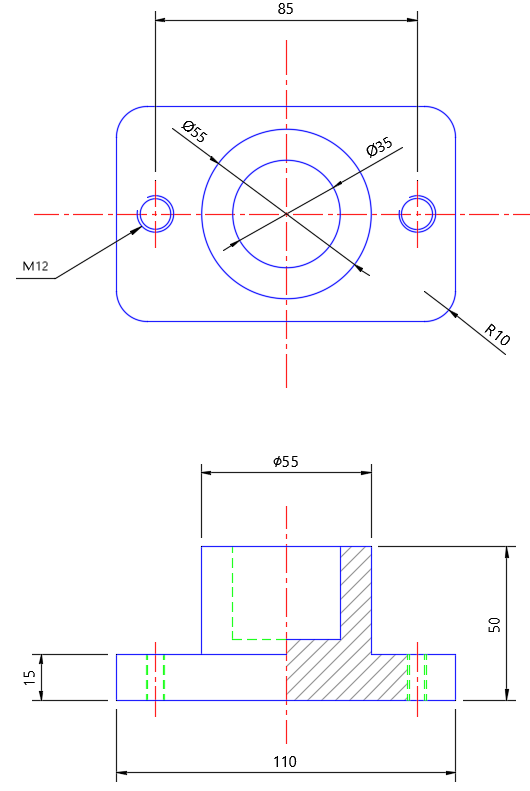

Download and open the sample drawing for this task. A finished sample of the sketch can be found in the Block gallery so you can check the accuracy of your work.

The following topics are discussed and demonstrated in detail in this Video Tutorial : These topics can be found in the video timeline at the intervals shown below.

WorkSession Focus : Tangential Geometry

  • The sample drawing Block; 00:06
  • Inserting Concentric Circles 00:46
  • Creating Parallel Lines using Offset; 01:10
  • Trimming corners using Fillet; 01:50
  • Removing a segment from a circle using Break; 03:09
  • Changing the Layer Properties of Objects; 04:07
  • Creating duplicates of objects using Copy; 04:25
  • Creating Projection Lines using the Extension Snap; 04:57
  • Creating duplicates using Mirror; 09:52
  • Applying source properties to destination objects using Match Properties; 11:00
  • Inserting a Hatch pattern; 11:34
  • Inserting Dimensions, Special Characters and Leader Arrows; 12:05
  • Creating a paper Layout for printing; 14:41
